Choosing the right suspension kit is essential for trailer stability, load distribution, and ride comfort. This guide highlights five reliable options that fit a range of trailer axles and capacities, from 3,500 to 6,000+ pounds. Each product section uncovers key features, compatibility notes, and what to consider when updating or replacing leaf spring suspensions. Use the buying guide to compare performance factors like capacity, eye-to-eye length, and installation hardware to find the best match for your trailer setup.
| Product | Approx. Capacity | Leaf Count | Eye-To-Eye | Notes | |
|---|---|---|---|---|---|
| Youxmoto 4pc 5 Leaf Springs | 3000 lb per spring | 5 | 25-1/4″ | Included U-bolt kit | Fits 5200-6000 lb trailers |
| TRAILER SUPPLIES Tandem Axle Kit – APT5 | 3,500–7,000 lb | N/A | Not specified | Triangle equalizers, tall hangers | Universal double eye leaf springs |
| SEHNSUCHT 4 Leaf SW5 Replacement | 6,000 lb kit (2 x springs) | 4 | 25-1/4″ | Hanger kit included | Suitable as SW5 replacement |
| dreamdragon 4 Leaf 3,500 lb Kit | 1,750 lb per leaf | 4 | 25-1/4″ | Complete hanger kit | For standard 3,500 lb axles |
| LIBRA 3500lb Tandem Kit | 1,750 lb per spring | 4 | 25-1/4″ | Includes 3,500 lb axle U-bolt kit | Replaces multiple SW4B style parts |
Youxmoto 4pc 5 Leaf Spring Kit
The Youxmoto kit provides a direct-fit replacement designed for 5200-6000 lb trailers, featuring five-leaf springs rated at 3000 lb per spring. Eye-to-eye length is 25-1/4 inches with a free open of 3 inches and 1-3/4 inch leaf width. The 9/16 inch bushing diameter supports robust articulation, while the included U-bolt kit supplies hardware for 3″ diameter round axles. This kit is positioned as a straightforward swap for SW5 configurations, emphasizing precise alignment and horizontal nut tightening for optimal performance.
TRAILER SUPPLIES Universal Tandem Axle Kit
This all-in-one suspension kit is designed for tandem trailers in the 3,500–7,000 lb range, supporting double-eye leaf springs, and compatible with 1-3/4″ wide springs. The kit emphasizes heavy-duty steel construction and anti-rust protection for long-term durability. It features triangle equalizers (7-3/4″ long) and 3-1/4″ tall hangers to improve load distribution and alignment, reducing suspension stress on rugged roads. It suits utility, cargo, and boat trailers needing robust, straightforward upgrades.
SEHNSUCHT 4 Leaf SW5 Replacement Kit
Designed as a SW5 replacement, this kit includes four 3,000 lb capacity leaf springs (total 6,000 lb capability for tandem setups) with eye-to-eye length of 25-1/4 inches, free open of 3 inches, and 1-3/4 inch wide leaves with 9/16 inch bushings. The included hanger kit contains equalizers (EQ-E1), tall hangers, shackle straps, and shackle bolts with nuts—providing a complete replacement solution for SW5 configurations and straightforward installation for improved trailer suspension reliability.

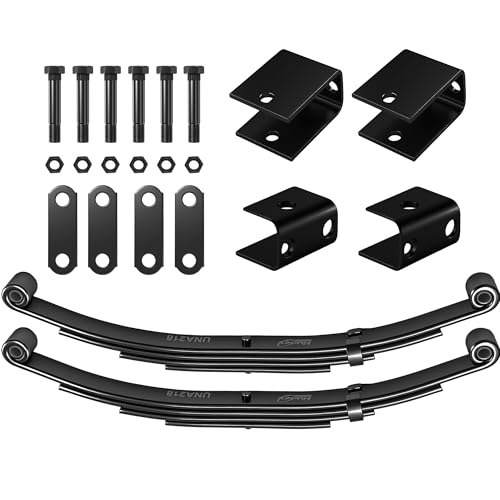

dreamdragon 3,500 lb Trailer Suspension Kit
This dreamdragon kit is built for a standard 3,500 lb trailer axle, delivering 1,750 lb per leaf through four leaves. Eye-to-eye measures 25-1/4 inches with a 3-inch free open and 1-3/4 inch leaf width; bushings are 9/16 inch. The kit uses manganese steel (60Si2Mn) for enhanced strength and corrosion resistance, with dual paint coats for added protection. It includes a complete hanger set, ensuring proper alignment and durability under load.
AB Tools 750kg Independent Units & Hubs
These independent suspension components pair with a 1″ trailer stub axle, 4″ PCD hub, and four stud configuration to deliver solid support for lighter-duty applications up to 750 kg. It is a compact option suitable for smaller trailers or auxiliary suspensions, emphasizing straightforward installation and reliable hub performance in daily towing scenarios.
LIBRA 3500lb Tandem Kit
The LIBRA 3500 lb tandem kit matches standard 3,500 lb axles with four-leaf springs rated at 1,750 lb per spring. Eye-to-eye length is 25-1/4 inches, free open is 3 inches, and the leaf width is 1-3/4 inches with a 9/16 inch bushing. The kit includes a 3,500 lb axle U-bolt set designed for 2-3/8″ round axles, along with four U-bolts, tie plates, and hex nuts to complete installation. It’s positioned as a versatile retrofit for common SW4B-style replacements and multiple SKU configurations.
Buying Guide: Key Purchase Considerations
- Axle compatibility: Match leaf spring length, width, and eye-to-eye measurement to your trailer axle system. Inaccurate sizing can cause misalignment, uneven wear, and reduced load capacity.
- Capacity vs. load: Understand per-spring vs. total system capacity. For tandem axles, ensure the combined capacity aligns with your trailer’s gross weight rating and intended loads.
- Leaf count and material: More leaves usually provide smoother ride and greater load distribution; materials like manganese steel offer improved strength and corrosion resistance.
- Hardware and installation: Check included hardware (U-bolts, shackle bolts, nuts) and whether the kit includes or requires additional equalizers, hangers, and straps for mounting.
- Hysteresis and alignment: Equalizers and proper hanger height influence suspension articulation and alignment; mismatches can lead to tire wear and steering instability.
- Maintenance: Look for coatings and bushings designed to resist road salt and water exposure; replace worn bushings or bent hangers promptly to maintain handling.
- Replacement compatibility: If upgrading from a specific SW4/SW5 or other standard, verify replacement compatibility with your current frame and axle design.
- Installation constraints: Some kits require basic metalworking or frame drilling; assess your workshop capabilities or consider professional installation.
- Warranty and support: Check product warranties and the seller’s support history for assistance with fitment questions or returns.
These options provide a spectrum of capacities and configurations suitable for common light- to heavy-duty trailer applications. When selecting, prioritize axle compatibility, overall system capacity, and installation completeness. For a balanced approach, target kits that include comprehensive hanger assemblies and equalizers, ensuring reliable operation under varied road conditions.
